XML Method to Split a Single column into Multiple columns in SQL Server
Suppose We have a Table called Tbl_EMP with columns Emp_Id , Emp_Name where the EMP_Name have the FirstName,MiddleName and LastName combined by the delimiter "_" underscore as follows..
Select*From Tbl_EMP;
GO
Emp_ID Emp_Name
1 ABC_CDE_DE
2 FGH_HI
3 JKL_LMN_NOP
4 PQR_RS
Now if we wants to Split this Name into 3 Columns as First_Name,Middle_Name and Last_Name , we can do it as follows using the XML Method :
DECLARE @Delimiter VARCHAR(50)
SET @Delimiter='_'; -- <=== Here, you can change the delimiter.
WITH CTE AS
(
SELECT
[Emp_ID],
[Emp_Name],
CAST('<D>' + REPLACE([Emp_Name], @Delimiter , '</D><D>') + '</D>' AS XML)
AS [Emp_Name XML]
FROM Tbl_EMP )
SELECT
[Emp_ID],
[Emp_Name],
[Emp_Name XML].value('/D[1]', 'varchar(50)') As [First_Name],
[Emp_Name XML].value('/D[2]', 'varchar(50)') As [Middle_Name],
[Emp_Name XML].value('/D[3]', 'varchar(50)') As [Last_Name]
FROM CTE
GO
If you observe the above Output, which may not looks accurate for records 2 and 4, as they don't have the Middle Name which should be Last Name.
Suppose We have a Table called Tbl_EMP with columns Emp_Id , Emp_Name where the EMP_Name have the FirstName,MiddleName and LastName combined by the delimiter "_" underscore as follows..
Select*From Tbl_EMP;
GO
Emp_ID Emp_Name
1 ABC_CDE_DE
2 FGH_HI
3 JKL_LMN_NOP
4 PQR_RS
Now if we wants to Split this Name into 3 Columns as First_Name,Middle_Name and Last_Name , we can do it as follows using the XML Method :
DECLARE @Delimiter VARCHAR(50)
SET @Delimiter='_'; -- <=== Here, you can change the delimiter.
WITH CTE AS
(
SELECT
[Emp_ID],
[Emp_Name],
CAST('<D>' + REPLACE([Emp_Name], @Delimiter , '</D><D>') + '</D>' AS XML)
AS [Emp_Name XML]
FROM Tbl_EMP )
SELECT
[Emp_ID],
[Emp_Name],
[Emp_Name XML].value('/D[1]', 'varchar(50)') As [First_Name],
[Emp_Name XML].value('/D[2]', 'varchar(50)') As [Middle_Name],
[Emp_Name XML].value('/D[3]', 'varchar(50)') As [Last_Name]
FROM CTE
GO
-----------------------------------------------------
We can handle this Using the Case Statement in above query as follows :
DECLARE @Delimiter VARCHAR(50)
SET @Delimiter='_'; -- <=== Here, you can change the delimiter.
WITH CTE AS
(
SELECT
[Emp_ID],
[Emp_Name], CAST('<D>' + REPLACE([Emp_Name], @Delimiter , '</D><D>') + '</D>' AS XML)
AS [Emp_Name XML] FROM Tbl_EMP )SELECT
[Emp_ID],
[Emp_Name],
[Emp_Name XML].value('/D[1]', 'varchar(50)') As [First_Name],
CASE
WHEN ([Emp_Name XML].value('/D[2]', 'varchar(50)') IS NOT NULL)
AND ([Emp_Name XML].value('/D[3]', 'varchar(50)') IS NULL)
THEN NULL
ELSE [Emp_Name XML].value('/D[2]', 'varchar(50)')
END AS [Middle_Name],
CASE
WHEN ([Emp_Name XML].value('/D[3]', 'varchar(50)')) IS NULL
THEN [Emp_Name XML].value('/D[2]', 'varchar(50)')
ELSE [Emp_Name XML].value('/D[3]', 'varchar(50)')
END AS [Last_Name]
FROM CTE
GO
-----------------------------------------------------

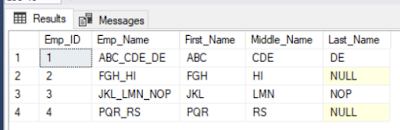

Output :
SET @Delimiter='_'; -- <=== Here, you can change the delimiter.
WITH CTE AS
(
SELECT
[Emp_ID],
[Emp_Name], CAST('<D>' + REPLACE([Emp_Name], @Delimiter , '</D><D>') + '</D>' AS XML)
AS [Emp_Name XML] FROM Tbl_EMP )SELECT
[Emp_ID],
[Emp_Name],
[Emp_Name XML].value('/D[1]', 'varchar(50)') As [First_Name],
CASE
WHEN ([Emp_Name XML].value('/D[2]', 'varchar(50)') IS NOT NULL)
AND ([Emp_Name XML].value('/D[3]', 'varchar(50)') IS NULL)
THEN NULL
ELSE [Emp_Name XML].value('/D[2]', 'varchar(50)')
END AS [Middle_Name],
CASE
WHEN ([Emp_Name XML].value('/D[3]', 'varchar(50)')) IS NULL
THEN [Emp_Name XML].value('/D[2]', 'varchar(50)')
ELSE [Emp_Name XML].value('/D[3]', 'varchar(50)')
END AS [Last_Name]
FROM CTE
GO
-----------------------------------------------------
Output :
-----------------------------------------------------
Notes:
--In the above query, for the XML Tags <D>;</D>, you can use any other letter like <T>;</T>.
--In the above query, for the XML Tags <D>;</D>, you can use any other letter like <T>;</T>.
--[Emp_Name XML].value('/D[1]' is the First Part of String with Delimiter...
--You can use the delimiter based on your source data.
-----------------------------------------------------
You can change/update the delimiter in the Source Table Column as follows :
Update Tbl_EMP
Set Emp_Name = REPLACE(Emp_Name, '_', '&')
Output :
Set Emp_Name = REPLACE(Emp_Name, '_', '&')
Output :
Emp_ID Emp_Name
1 ABC&CDE&DE
2 FGH&HI
3 JKL&LMN&NOP
4 PQR&RS
1 ABC&CDE&DE
2 FGH&HI
3 JKL&LMN&NOP
4 PQR&RS
--------------------------------------------------------------------------------------------------------
Thanks, TAMATAM ; Business Intelligence & Analytics Professional
--------------------------------------------------------------------------------------------------------
